PVB intermediate membrane

products detial

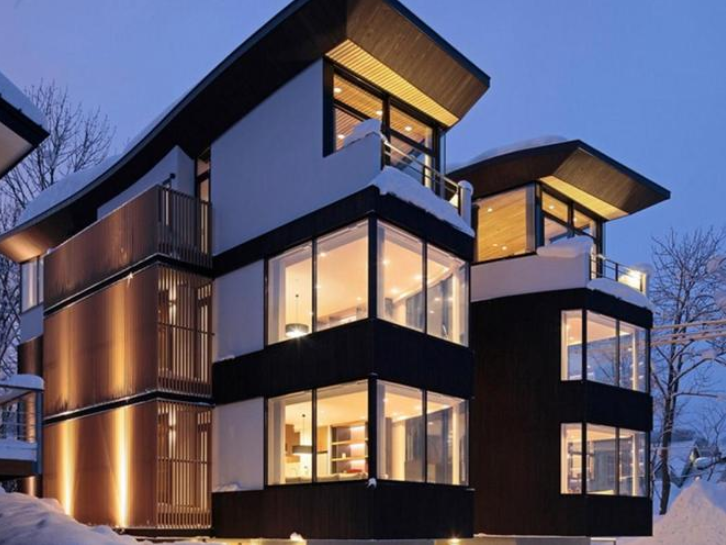

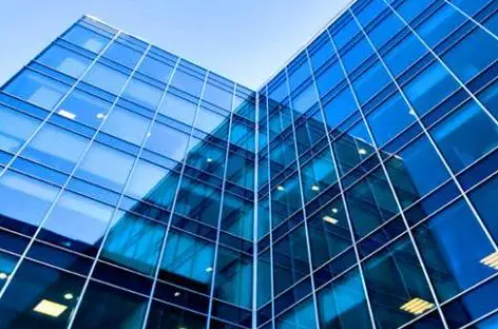

PVB is a bonding material used to make laminated glass. This product is a PVB film with heat insulation function by adding nano heat insulation medium to PVB. The addition of heat insulation material does not affect the explosion proof performance of PVB film. It is used for automobile front glass and building glass curtain wall to effectively realize heat insulation and energy saving and reduce air conditioning energy consumption.

The company produces a wide range of color PVB films, including domestic and export color systems. Includes: porcelain white, opal white, frosted, green, ocean blue, tawny grey, Blue star grey, European grey and so on.

Angoo PVB Film product specifications (roll)
thickness	breadth	Length
038mm	500mm-3600mm	400m
0.76mm	500mm-3600mm	200m
1.14mm	500mm-3600mm	150m
1.52mm	500mm-3600mm	100m
Note: Other non-standard sizes can be customized according to customer requirements

Product category		0.38mm	0.76mm	1.52mm
Length tolerance		＋(0-2)	＋(0-2)	+(0-1)
Width tolerance		＋(0-15)	＋(0-15)	+(0-15)
Thickness tolerance		±0.02	±0.03	±0.05
Moisture content		≤0.5％	≤0.5％	≤0.5％
Tensile strength		≥20	≥20	≥20
Fog degree	Building grade	＜0.4	＜1.5	＜2.0
Fog degree	Automotive grade	＜0.6	＜0.8	-
Percentage of contraction		＜10	＜10	＜10
Light transmittance		≥88	≥85	≥85
Elongation at break		≥200	≥200	≥200
Bond strength		≥8	≥8	≥8
Electrical resistivity		≥2	≥2	≥2

【Angoo PVB Film Product Specifications (volume)】

Safety, anti-theft, explosion-proof, sound insulation, energy saving performance

PVB intermediate film is one of the best bonding materials for making laminated and safety glass in the world.

Transparent, heat resistance, cold resistance, wet resistance, high mechanical strength

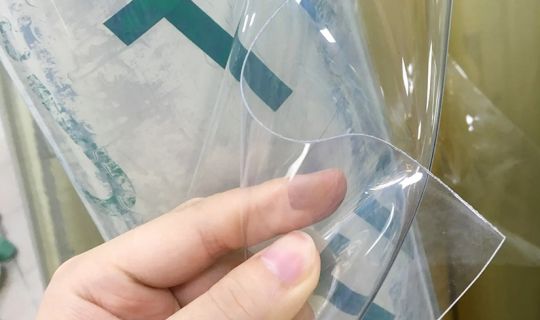

PVB intermediate film is a kind of polymer material which is formed by plasticizing and extrusion of polyvinyl butyric aldehyde resin by plasticizer. The appearance is translucent film, no impurities, flat surface, certain roughness and good softness, and has good adhesion to inorganic glass.

Wide range of applications

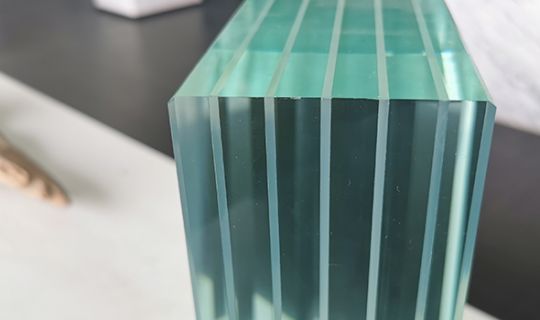

PVB intermediate film is mainly used for laminated glass one or two pieces of glass sandwiched into a layer of PVB film, by high pressure composite, heating and made of special glass. PVB laminated glass is widely used in construction, automobile and other industries because of its safety, heat preservation, noise control and UV isolation functions. PVB intermediate film produced by special formula also has a wide range of applications in aerospace, military and high-tech industries, such as aircraft, spacecraft, military instruments, solar cell box solar receiver and so on.
